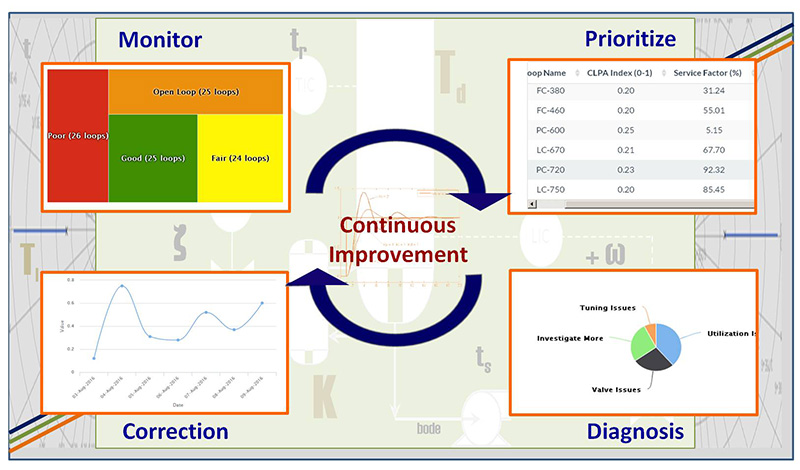

PIDs are basic building blocks of plant DCS, their performance affects the plant productivity. Loop utilization in AUTO mode, controller accuracy, loop efficiency, process oscillations, parameter tuning are major challenges. Regular PID performance monitoring/diagnosis can help overcome the issues. Automated tool uses trends to show PID health index, establishes possible reasons for under-performance and gives suggestions for correcting the loop. Contributes to higher asset utilization and increased controller efficiency OPTIMakx-PID
..scientific, systematic & fully automated tool for PID optimisation
technical features
* Offline Data Read : Automatically reads OP/PV/SP/MODE trends for pre-defined set of PID loops from plant DCS (Historian) for required date/time period – on demand or as scheduled task.
* Data Health Index : detects and highlights bad, missing, outlier data. Generates single Data Health Index to show confidence for further usage.
* PID Performance Assessment : advanced statistics on process variables, several KPIs including utilization factor, control action accuracy, valve travel index, oscillation issues -etc) – graphical summary of overall PID health Index for groups of PIDs relevant to equipment /section /department /plant performance.
* PID Performance Diagnosis : Advanced analytics like classification of loops based on performance Index, diagnosis for under-performance, trend assessment, investigation for oscillations, control element abnormalities, design and tuning issues and more…) – based on scientifically proven algorithms.
* PID Performance Optimization : assessment for deviations from optimum limits, investigation on PID constants, smart PID tuning assist, offline PID simulation, detection of best performance patterns (shifts, operator, unit, month, season wise assessment of performance), alarms for preventive maintenance of controller components.
* Powerful Visualization : Innovative and User friendly graphical display of results which can be summarized and customized based on relevance at different levels (Chief/Manager/HoD/Engineer/Supervisor..) and different groups (plant, unit, section, equipment…).
tool features
* Installable on stand alone PC or accessible on plant intranet or can be configured on cloud (for remote assessment)
* Double authenticated secured communication with automation server.
* Compatible with different DCS setups from variety of automation OEMs and OPC compliant automation systems.
* Does not access real time plant DCS and does not disturb plant operation.
* Data for Configurable set of Process variables can be extracted in any usable format for Designated period of time.
* Data collection can be setup as automatic scheduled task and data processing and reporting is run automatically after that.
* Customized configuration settings using same variable TAG names as used in plant DCS.
* AUTO reporting, email and SMS facility for highlighting issues.
? Want to Understand more – call us for ONE day training on “PID health assessment and optimisation”
? Want to Assess plant status – contact us for OPTIMakx-SERVICE (Two plant wide Audits/Year + 1 day Training). Process experts using the tool will provide Health check-up of important PID loops, diagnosis for major issues and suggestions for improvement.
? Want to Update often – get the benefits of continuously improving tool/ algorithms, world-wide PID optimisation experience and benchmarking with best in your process/industry. Access multi-user / unlimited analysis option with OPTIMakx -CLOUD on internet.
? Want to Use regularly – install & assess plant health on timely basis, configure to your needs, customize to your plant and run on your PC/intranet on demand/ as scheduled and get the snap shot of PIDs and manage them systematically with OPTIMakx –PRODUCT. Unique and new decision support tool.
♠ Give us chance to bring this innovative TOOL to your plant.
